Purpose:

The purpose of this lab is:

• 1. To get familiar with the basics of a hardware description language.
• 2. To design a decoder for a 7-segment display as part of the 4-bit adder.
• 3. Implement the design and configure the FPGA or CPLD.
• 4. Experimentally verify the operation of the 4-bit adder and display the result on two 7-segment displays.

The pre-lab section consists of two parts, each having its own set of pre-lab questions.  This lab is more extensive than the previous lab. Make sure that  you do all the readings and answer all questions before coming to the lab or you will not be able to finish it on time.

DECODER

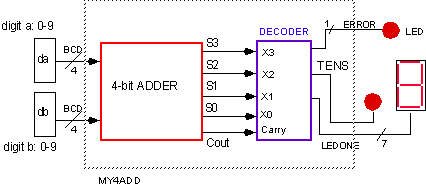

In the previous lab you designed a 4-bit adder (MY4ADD) using a full adder (MYFA) as a building block. In this lab you will be expanding the circuit to include a decoder (designed in HDL) so that you can display the results of the addition on a 7-segment display. The block diagram of the system is given in Figure 1. At the end of the lab, you will implement this adder in an actual PLD (FPGA or CPLD) and experimentally verify the performance.


The project involves the design of a display decoder that decodes a 5-bit binary number coming from the 4-bit adder (four Sum bits and one Carry_out bit) and which displays the results on a 7-segment LED display. If you are using the Digilab board and FPGA demoboard, you  have two 7-segment displays available (one for the digits and one for the tens). However, the XS40 and XS95 boards have only one 7-segment display. In that case you won't be able to display numbers larger than 9, unless you add an additional external LED for the ten digits (more about this during the implementation and testing steps).  The decoder circuit is somewhat different from a regular 7-segment display decoder which decodes a BCD input (i.e. a 4-bit binary word) to display the results on a single 7-segment display.

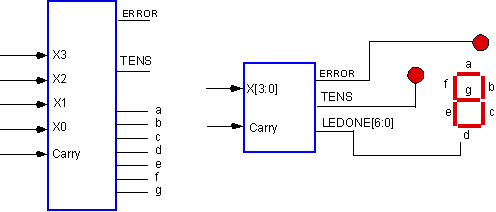

The block diagram of the decoder is shown in Figure 2.


The inputs to the decoder are Carry and X3, X2, X1, X0  (for short [X3..X0] or X[3:0]) and the outputs are a1, b1, ..., g1; and tens corresponding to seven signals for the units 7-segment display and the tens digit.

In order to design this circuit you will need to come up with the truth table. In doing so, remember that the two 4-bit input words that need to be added each represents a digit (from 0 to 9 as in a BCD code) and thus can have a  maximum value of 9 each (or 1001₂). The largest number that needs to be displayed is thus 18, which occurs when the two 4-bit inputs of the adder are both 9. As a result, the truth table has only 19 entries, starting from 00000 to 10010₂. This will simplify the design of the decoder considerably because any signal larger than 18 (or 10010₂) is not possible. If it were to occur, we know an error must have occurred during the operation, or that we added numbers larger than 9 (which is not allowed if we use a BCD representation). The digit of the tens can only be 0 or 1.

• When using VHDL, read the following sections of the VHDL Primer.
• Introduction
• Levels of Representation and Abstraction
• Basic Structure of  a VHDL file
• Dataflow Modeling (concurrent signal assignments)
• Read also section 3-13 of the textbook (Mano and Kime).
• When using ABEL, read the following sections of the ABEL-HDL Primer.
• 1. Introduction
• 2. Basic Structure of an ABEL source file
• 3. Declarations
• 4. Numbers
• 5. Sets (only the introduction section; you can skip section 5a and 5b)
• 6. Operators
• 7. Logic Description: sections a and b only
• 10. Miscellaneous: section a.
• Read also the tutorial on "Entering a Design with VHDL" or "Entering a Design with ABEL-HDL", depending on the language of choice.
• Pre-lab Questions (part 1 of 3 - 10 pts.) (Use Blackboard to submit your answers online; first write them down in your lab notebook since you will need them to do the lab).
1. Generate the truth table for units digit (least significant digit). This table has as inputs Carry, X3, X2, X1, X0 and as outputs the seven segments a, b, c, d, e, f, g. As was discussed in the description of the Digilab board, the LEDs of the 7-segment displays will light up when a low signal ("0") is applied to its cathode. Thus the signals of these segments should be realized as "ACTIVE-LOW" (making the function "a" equal to "0" will light the LED up).
2. For the tens digit, we know that it can only be blank (0) or 1. The output should be digit 1 as soon as the result of the addition is 10₁₀ (=01010₂) or larger. Find the logic expression for the TENS digit and write it as a minimized sum of product expression. (note the signal TENS  can be an expressed as an active-high signal, since we will display it on a regular LED).
3. Derive and give the logic equation for the ERROR signal that goes ON whenever the output is larger than 18. Since this ERROR signal will be displayed on one of the regular LEDs, this signal is an active-high signal.
• Pre-lab Questions (part 2 of 3 - 10 pts.) related to VHDL.
• Click here for the VHDL questions

IMPLEMENTATION

You will  implement your design on a FPGA or CPLD which will complete the design cycle as explained in the introduction of the Foundation tutorial. Configuring and testing  your design will be done  using one of the prototyping boards. These boards contain the device (FPGA or CPLD) together with a series of switches, 7-segments displays, LEDs as well as power connections. It will be important for you to get familiar with the major features of the board your are using.

1. Getting yourself familiar with the board

• If you are using the Digilab board, read the description of the board (up to the section "Seven-segment display").
• Use the General Purpose Switches SW1-SW8 to apply inputs to the adder. Use the first 4 switches for the A (A3..A0) and the last four switches of the B inputs. The pin numbers to which the switches are connected are given in the table in the section describing the switches SW1-SW8.
• Use seven-segment displays DISPL 4 for the least  significant digit (units). Consult the table with the pin numbers corresponding to the different segments of the displays. To use the display,  the cathodes of the individual segments (A, B, C, ...G) need to be connected to the signal one wants to display. When the signal on the cathode is "High" the segment will be OFF and when the signal is "Low", the segment will light up. Thus the signals that drive the seven-segment display are "Active-Low".
• For the TENS digit, you can use can use one of the regular LEDs on the Digilab board (e.g. use LD1).

• For the ERROR signal use LED LD8. Check the Digilab description ( table) to find out to which pins of the FPGA these LEDs are connected.
• The other connections to the FPGA such as Vdd (Power), Ground, Programming and mode pins, etc., are already made on the board. So you do not need to concern yourself about it.
• If you are using the FPGA demoboard, read the description of the board (sections up to LED bar indicators). The board houses two types of FPGAs: XC4010E (or XC4003E) and XC3020A. You will be using the XC4010E (or XC4003E - check the FPGA on the board).
• The General Purpose Switches SW3 can be used to apply inputs to your adder. There are 8 switches, so you can use the first 4 switches for the A (A3..A0) and the last four switches of the B inputs. The pin numbers to which the switches are connected are given in the table in the section describing the switches SW3.
• The 7-segment displays are described in the "7-segment Display" Section together with the pin numbers to which they are connected. Consult the table for pin numbers. Use segments "b" and "c" of  U7 for the most significant digit (it can only be blank or 1) and U8 for the least significant one. Notice that the LEDs will go on when the signal applied to it is low (i.e. the LEDs are "active-low").
• For the ERROR signal you can use one of the 8 LEDs of the Bar Indicators. Check the demoboard description ( table) to find out to which pins of the FPGA these LEDs are connected.
• The other connections to the FPGA such as Vdd (Power), Ground, Programming and mode pins, etc., are already made on the board. So you do not need to concern yourself about it.
• If you are using the XS40 board, read the general introduction of the board, and the sections on the 7-segment LEDs and parallel port.
• This board has one 7-segment LED display that allows you to show one digit. The pin numbers of each  segment are given in the write-up. The LEDs will light up when a "high" signal is applied over its terminal and will go off when a "low signal" is applied. These LEDs are thus "Active-high".
• Input signals can be applied through the parallel port.
• In case you are using the XS95 board, get yourself familiar with its main features. Read the general introduction, and the sections on the 7-segment LEDs and parallel port.
• This board has one 7-segment LED display that allows you to show one digit. The pin numbers of each  segment are given in the write-up. The LEDs will light up when a "high" signal is applied over its terminal and will go off when a "low signal" is applied. These LEDs are thus "Active-high".
• Input signals can be applied through the parallel port.
• Read the tutorial on "Implementation". This section deals with translating, place&routing, and mapping or fitting (CPLD) the design. The result of the implementation process is a bitstream that can be downloaded  for programming the device.
• Assigning pin numbers. Once you are familiar with the prototyping board and its connections you should make a table with the names of the input and output signals (as indicated on your schematic MY4ADD). The names of the signals should be identical to the ones you used to name the nets of the input and output pads (see your schematic of the 4-bit adder with decoder). These include the 8 inputs for A3..A0, B3..B0, the 7 outputs for cathodes of the 7-segment display  A, B, ... G,   the TENS and  the ERROR signals. Make a table with the pin names and corresponding pin number  to which you want to connect each signal. The pin numbers will depend on the type of board you are using.
• For the Digilab board, the input A₃ input should be connected to switch SW1, A₂ to SW2,  A₁ to SW3 and A₀ to SW4 in this sequence; B₃ should be connected to SW5, B₂ to SW6,... B₀ to switch SW8. From the Digilab board description (table of the switches) you will find that SW1 is connected to pin 28 of the FPGA, etc . The output of segment "A" should be connected to the cathode of segment "A" of the  7-segment display, which corresponds to pin number 51. Do the same for all inputs and outputs. For the ERROR signal use LED8. Write the table down in your lab notebook;  you will need it later in the lab. You will also fill out a similar table as part of the online quiz (see next).
• For the XS40 board, you have only one 7-segment display  available. This will be used to display the unit digit. The output D1A should thus be connected to segment "a" of the 7-segment LED, which corresponds to pin number 19; output D1B to pin 23, etc. The inputs A and B will be applied through the parallel port. Connect A1 to parallel port D0, A2 to D1, ..., B1 to D4, etc. You will find that D0, D1,... is connected to pins 44, 45, etc. The pins 32 and 34 which are connected to the parallel ports D6 and D7 on the XS40 board are special purpose pins used by the FPGA to set the mode at power up: M0 and M2  pins. In order to assign input signals to these pins you will have to place special pad symbols on the schematic instead of the regular IPADs: use MD0 and MD2 pad symbols. By using these symbols the signal will be automatically connected to the pin number 32 and 34, respectively.
• For the FPGA demoboard, the A0 input should be connected to switch SW3-1, A1 to SW3-2, in this sequence. From the Demoboard description (table of SW3) you will find that SW3-1 is connected to pin 19 of the XC4010E. The output D1A should be connected to segment "a" of the 7-segment LED U8, which corresponds to pin number 49. Do the same for all inputs and outputs. The tens digit can only have the value 1 or 0 and thus needs to be connected to segments "b" and "c" of the LED display. Write the table down in your lab notebook, because you will need it later in the lab. Take into account that you will need active-low signals to drive the LEDs. For the ERROR signal use one of the bar LEDs. You will also fill out a similar table as part of the online quiz (see next).
• For the XS95 board, you only have one 7-segment display  available. This will be used to display the unit digit. The output D1A should thus be connected to segment "a" of the 7-segment LED, which corresponds to pin number 15; output D1B to pin 18, etc. You can use the decimal point to indicate the tens digit. Inputs A and B will be applied through the parallel port. Connect A1 to parallel port D0, A2 to D1, ..., B1 to D4, etc. You will find that D0, D1,... is connected to pins 46, 47, etc.
• Read the tutorial on "Configuring a Device". This section explains how to download the bitstream in the target device. Read the section corresponding to your prototyping board. For the XS40 board, read only the section on "Programming the FPGA through the Parallel Port"


• Pre-lab Question (part 3 of 3 - 5pts) (Use Blackboard to submit your answers online; first write them down in your lab notebook since you will need them later to do the lab).
1. Fill out a table (on Blackboard) with the pin numbers of the input and output signals (see the section above on Assigning pin numbers).

A. Parts and Equipment:

• PC
• Xilinx Foundation Tools F2.1i
• FPGA board (Digilab, XS40 or FPGA demoboard)

The lab consists of two parts. The first part is to design the decoder (as a macro). The second part is to add the decoder to the existing 4-bit adder (MY4ADD) schematic and simulate the overall system.

General Information.

Write the HDL  source file for the decoder circuit you designed as part of the pre-lab (Figure 2). In case you work with VHDL, you can use the "WITH-SELECT-WHEN" construct to specify a truth table (a truth table construct does not exist in VHDL - consult a VHDL tutorial or Language assistant for more information). When using ABEL you can  use the Truth Table option for the units digit, and use the equation option for the tens digit.

Name the inputs X3, X2, X1, X0 and Carry; for the outputs name them LEDONE6, LEDONE5, ..., LEDONE0,  TENS, and ERROR for the units display, tens and error signals, respectively. It will be convenient to define the inputs and outputs as buses X[3:0] and LEDONE[6:0], as schematically shown in Figure 2b.

Macro symbol and source file for the Decoder Circuit

1. Start the Xilinx Foundation Tools. Open your project (MY4ADD) of the previous lab (4-bit adder). When you copy your project  from another computer or disk, make sure you copy both the project folder (MY4ADD) AND the .pdf file (my4add.pdf) into your folder c:\users\your_name\. The .pdf file is required and contains information about the project. Never place the project inside a folder whose name has more than 8 characters! This will give unexpected problems. The best method is to put the project in a folder with the same name (probably your name) as it was last week.

If you have problems, consult the log file at the bottom of  the Project Manager window or read the "Common Mistakes" section.

2.  Open the schematic editor. This should bring up the schematic of last lab (4-bit adder circuit).


3. Next you will create the symbol for the macro:


2. In the Schematic Editor window select TOOLS -> SYMBOL WIZARD. Click NEXT.
3. In the Design Wizard Contents window, enter the Symbol Name: MY7DSPL.
4. In the Contents window, select the HDL radio button and VHDL language button. Then click NEXT.
5. In the Design Wizard Ports window, click on the NEW button to enter the name of the inputs and outputs. Enter Carry in the name field and select Input in the Direction field. Next define the input bus X[3:0]. Click on the NEW button and enter X[3:0] in the name field and select Input in the Direction field. Click NEW and enter LEDONE[6:0] in the Name field; select Output in the Direction section. Before clicking NEW go to the ADVANCED button and select the 'combination' port when using ABEL or STD_LOGIC_VECTOR  in VHDL. Also include the TENS and ERROR output port. When finished defining input and outputs, click on NEXT.
6. In the Attributes window, add some comments. When done, press the NEXT button.
7. Click on the FINISH button. The new symbol will be placed in the project library.
8. In the Schematic Editor window, place the newly created macro MY7DSPL on the schematic. Select the hierarchy icon "H" to open the macro. This will open the HDL editor window. You can now define the new macro for which you just created the MY7DSPL symbol.
9. You will notice in the Editor window that the pins have already been declared. Make sure that the output pin LEDONE6.. LEDONE0 have been declared properly (in ABEL: as an istype 'com').
10. Enter the equation for the "TENS" digit. Enter here also the equation for the ERROR signal.
11. For the segments a1, b1, etc, use the  Truth Table construct in ABEL or the"With-Select-When" construct in VHDL. (for the syntax consult the ABEL primer - section on LOGIC description, or the VHDL Primer - section on Dataflow modeling). You can use SETS in ABEL to simplify your truth table and use decimal representations of the input and output signals (see example in the ABEL primer). In case you are using the FPGA demoboard or the Digilab board  be aware that theLEDs or the seven-segment displays are active low, i.e. they will light up when a low signal is applied. In order to account for this you can define the truth table accordingly.
• When done, check the syntax: SYNTHESIS -> CHECK SYNTAX. In case you get errors check the syntax of the HDL code and consult the error report. In case the  report does not give any error messages, check that you did not place your project in a directory that has more than 8 characters. This will cause an error during the synthesis!
• Save the file.
• Simulate the macro and verify that it works properly.


Note: An alternative way to create the macro is to go to the TOOLS -> DESIGN ENTRY -> HDL Editor in the Project Manager window. However, when using ABEL, this method has the annoying feature that input and output buses are flattened on the macro symbol.

1. In the schematic editor you will need to add the decoder between the SBUS and the OBUF-OPADS. Disconnect the OPADS and OBUF from the SBUS.
2. The SBUS needs to be connected to the X[3:0] input of the decoder.
3. The outputs of the decoder will need an OBUF and OPAD because these signals will become the physical pins of the device (FPGA). Use a bus to connect the output  to the OBUF. When connecting the signals between the bus and the decoder be careful with the sequence in which you connect them (least significant bit of the bus should be connected to the least significant bit of the circuit, ...).
4. Also label the output nets (i.e. the wires between the OBUF and OPAD) with the names A, B, ... G.
5. Displaying  TENS  and ERROR signal. This depends on the type of board you are using.
• In case you are using the Digilab board you will display the  the TENS digit on LED LD1 and the ERROR signal on  LED LD8. The TENS digit will be displayed on the 3rd seven-segment display as discussed earlier. However, if you did not design the Display Circuit, you can use one of the other LEDs (e.g. LD1) to show the presence of the tens digit.
• In case you are using the FPGA demoboard you can use the segments of the second 7-segment LED to display the tens digit which can have a value of 0 or 1. When the tens digit is 1, drive the LED segments "b" and "c" on, otherwise leave it off. You will  need two outputs pads and buffers, both connected to the "tens" signal. Add these two pads and buffers now and label the nets between them as D2B and D2C. Also include a buffer and output pad for the ERROR signal and name the net between the OBUF and OPAD: ERR.
• The XS40 board has only one 7-segment display that will be used for the units digit. The tens cannot be displayed unless you use an external LED. In that case you will need a protoboard and an LED that you connect to one of the pins of the FPGA that is not used (e.g. pin 3 and 4 are available as output pins; these pins are connected to the address pins of the on-board SRAM). Add to the schematic an OBUF and OPAD connected to the tens signal. Label the net between both gates: TENSDIG. If you have a second diode available, you can also display the ERROR signal.
• The XS95 board has only one 7-segment display available. However, this display has a decimal point that you could use to indicate whether the tens digit is 0 or 1. Add an OBUF and OPAD, connected to the tens signal. Label the net between the buffer and the pad as TENSDIG. You will not be able to display the error signal unless you use an external diode. You can use one of the free I/O pins on the CPLD (e.g. pin 4) for the ERROR signal.
6. If  you are using the XS40 board and want to connect the input signals B3 and B4 to the parallel port D3 and D4, you will need to use the special purpose pads MD0 and MD2, respectively (D3 and D4 are connected to pins 32 and 34 on the XS40 board).
7. The Carry-in (the Cin of the least significant bit FA) of the 4-bit adder is always "0". Thus, it is not necessary to connect the Carry-in to a pin (pins are expensive; devices are often pin limited). Rather than using a pin, lets connect the Cin internally to 0V or Ground. Remove the IPAD and IBUF for the Cin. Then place a Ground (GND) symbol in the schematic. This symbol is available from the SC Symbol windows (select GND). Place the GND symbol and connect it to the Cin of the FA of the least significant bit.
8. Check your schematic, save it and create a netlist.

Go to the simulator and do a functional simulation of the circuit. You can use the same inputs for the A and B signals as you did in the previous lab. You can load these waveforms, by going to the FILE->LOAD WAVEFORMS menu. Display the signals SBUS and the Carry_out signals in addition to the 7-segment display (A, B, etc.), the signals for the TENS digit and the ERROR signal. It may be helpful to check the results of the simulation on the schematic. In case the circuit does not give the right result, show the waveform of some of the intermediate signals and check where the circuit goes wrong. Debug the circuit in a systematic way. Check that your busses are connected right (most significant bit of the bus should be connected to the most significant bit of the circuit, etc...). Make sure that the macro's you designed are working properly. When the simulation gives the right result, take a screen catpure of part of the waveform. You will include this in your report.

1. Now you are ready for the implementation. Follow the tutorial on "Design Implementation" for your specific board. In the Project Manager window, click on the IMPLEMENTATION button. This will open the Implement Design window. The device should be S10PC84 if you are using the Digilab board, or 4010EPC84 for the FPGA demoboard, 4005XLPC84 for the XS40 board or 95108PC84 for the XS95 board.  Click on RUN. You will be notified when the implementation has completed successfully. In the Project Manager window, click on the Versions tab in the left window pane. You will notice that the project has been implemented. In case errors occurred you should check the Implementation Log file (Project Manager window: click on the Reports tab in the right window pane) and check what went wrong. You can also check the "Common Mistakes" section.

2. The next step is to assign the input and output signals to the right pins of the FPGA or CPLD device. This can be done in two ways. In the first lab you placed pin numbers on the schematic using the Properties Attributes. An alternative method is  to use the Constraint Editor to specify pin locations. In the Project Manager window, select TOOLS ->IMPLEMENTATION -> CONSTRAINT EDITOR. This will open the GUI for the constraint editor. Click on the Ports tab and fill out the corresponding pin numbers for each signal in the Location column on the top of the window. Pin numbers start with a P followed by a number (ex. P19). Use the same numbers as you did in the pre-lab, depending on the board you are using. Double check the numbers and save the file. If you are using the XS40 board, you do not need to define the pin number P32 and P34 since these are special purpose pins and specified on the schematic with the special symbol pads MD0 and MD2, respectively.

3. Note: In order for the system to use  the new constraint file you have to  re-run the translate operation.  This is done by going to the left window pane (versions tab) in the Project Manager and selecting the Revision and Version for which you have defined the constraints. Place the mouse over the revision/version name and click the right mouse button. Select "Invoke Interactive Flow Engine". This will open the Flow Engine window. Start the implementation including Translate, Map, etc.

4. When the implementation has been successful, check the reports. In the Project Manager window click on the Reports tab and select Implementation Report files.
4. The Map report. This report gives a design summary as well as information about errors, warnings, and removed or added logic. Open this report and check the the usage of the CLBs (Configurable Logic Block) and IOBs (IO Block). Write this information together with the equivalent gate count for your design down in your lab notebook. Check aalso the section 4 and 5 on removed logic.
5. The Place&Route report tells also how much of the FPGA resources have been utilized (or the fitting report for a CPLD). It also  reports  if any connections could not be routed. You will also find information about the average connection delays. Open this report and check  that all connections are routed and that no errors were reported.
6. The Pad report or Fitting report gives the pin locations.Check that the assigned pin numbers are the one you have specified. The constraint editor has been known to be unreliable. If the pins are not assigned right, you may edit the user constraint file directly instead of using the Constraint Editor. Edit the user constraint file using the HDL editor in the Project Manager; edit the file corresponding to the version and revision you want to implement (MY4ADD\xproj\ver\rev\my4add.ucf). Save the file and re-run the implementation. Check the pad report again.
7. The Post Layout Timing Report gives you information about the delay between input and output signals. This is important to get an idea about the speed of your circuit. Open this report and check the delays. Note the maximum combinational path delay and the maximum net delay in your lab notebook. Between which input and output signal does the maximum delay occur?
In case the compiler gives errors, go to the Report Browser and check the Implementation Log file. It is important that you get familiar with the error reports as a way to debug circuits. This is an essential part of each design (you should not have to bug the instructor every time you have an error; try to find the cause of it yourself first).

If you are using a FPGA, you can  look at the internal structure of the FPGA and see which CLBs have been used and how they are interconnected. In the Project Manager window select TOOLS -> IMPLEMENTATION -> FPGA EDITOR. In case you are using a CPLD, go to TOOLS -> IMPLEMENTATION -> CPLD CHIP VIEWER in  the Project Manager window.


The next step is to download the configuration file into the FPGA.  Ask the lab manager for a FPGA or CPLD board. Be careful when handling these boards. Follow the tutorial in "Configuring the Device".

• If you are using the Digilab board:
• Connect the parallel port on the board to the parallel cable from the PC.
• Follow the procedure for downloading to the Digilab board.
• If you are using the XS40 board, follow these instructions:
• Connect the parallel port on the board to the parallel port of the PC. Next, connect the power adapter to the XS40 board.
• Double click on the GXSLOAD program, which is located in the xstools/bin directory (or on the desktop). This will open the gxsload window. Select the parallel port (e.g. LPT1) and leave the EEPROM box unchecked (see Figure 4)
• You can now drop the bitstream file of the design you want to download into the window. This is done by going to the directory in which you stored your design (e.g. C:\MY_DIR\MY4ADD\) and selecting the configuration file, my4add.bit. The configuration file in the directory corresponds to the latest version you implemented. You can also go directly to the particular version you want to download: C:\MY_DIR\MY4ADD\xproj\ver\rev\my4add.bit. Drag and drop the my4add.bit file into the "gxsload window". The download process will begin.



Figure 4: GXSLOAD window for programming the FPGA or CPLD through the parallel port. (Screen clip from the XESS (TM) GXSTools).


• If you are using the FPGA Demoboard follow these instructions:

• Connect the AC adapter to the board.

[ In case your board does not have a voltage regulator and jack, you can power the board by connecting power to the 2 pin connector on the demoboard. These two pins are located at the top of the board, left of the SW2 switches and the U2 socket. Be careful to connect the header with the + sign to the +5V pin (indicated on the board) and the header with the - sign to the Ground pin. Set the voltage to 5V and limit the current to 0.2A. Never put a voltage larger than 5V to the board or invert the polarity, as this will damage the board. Be careful! When the voltage has been set, connect the wire labeled "+" to the + output of the power supply and the "-" wire to the - output of the supply.]
• Double check the position of the configuration switches SW2 from left to right (ON - OFF - OFF - ON - ON - ON - ON - OFF)
• Connect the XChecker Cable to the parallel port (a parallel cable is available next to the monitors).
• To download the design in the FPGA, go to the Project Manager window. Click on the Versions tab, and select the latest version. In the right side window pane, click on the Flow tab and press the Programming Button. In the Select Program window, select Hardware Debugger.  If a message appears saying "Design does not have READBACK block connected. ...", click OK. In the Hardware Debugger window, select DOWNLOAD -> DOWNLOAD DESIGN. When the downloading is successful, the decimal point of the 7-segment displays U7 and U8 will be off.

• For the XS95 board follow these steps:
• Before you can download the bitstream in a CPLD you need to translate the bitstream generated by the Flow Engine into a format that is suitable for the CPLD device. This is an extra step that was not needed for a FPGA. If you haven't done this step yet, do it now.
• Once you have generated the right file (.svf),  download the design (.svf file) from the PC in the CPLD on the XS95 board as follows.
• Connect the parallel port on the board to the parallel port of the PC. Next, connect the power supply to the XS95 board.
• Double click on the  GXSLOAD program, which is located in the xstools/bin directory. This will open the gxsload window (see Figure 3 above). Select the parallel port (e.g. LPT1) and leave the EEPROM box unchecked.
• You can now drop the configuration file of the design you want to download into the window. This is done by going to the directory in which you stored your design corresponding to the version and revision you would like to download (e.g. C:\MY_DIR\MY4ADD\XPROJ\Ver\Rev) and selecting the configuration file, my_proj.svf. Drag and drop the  my_proj.svf  file into the "gxsload window". The download process will begin. This may take several seconds.

You are now ready to test the design.

• When using the Digilab board, set the general purpose switches SW1-SW8 in the zero position. The units display should show 0.
• What do you notice? Are all four seven-segment displays showing the same results? If so, why is that the case (hint: see the Digilab Board discription)? How can you prevent the first three displays from showing the units digit? Go ahead and switch off these three displays. Be careful not to short outputs together since that will damage the FPGA! If you are not sure check with the TA.
• Once the display is working properly (only the 4th display shows the units digit), change the switch settings for the A and B input signals and check that the display for the units digit show the correct sum. Also check the TENS digit (displayed on LD1). Does the ERROR signal goes on when needed?
• Write the results of the testing down in your lab notebook.
• For the XS40 board, test signals are applied through the parallel cable using the GXSPORT utility (in the XSTOOLS/BIN directory,

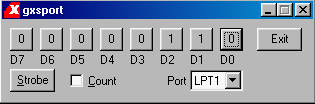

click on GXSPORT) shown in Figure 5. In the GXSPORT window, set the value of the data bits corresponding to the input signals as defined in the user constraint file (e.g. input A1 is connected to port D0, etc.).



Figure 5: GXSPORT window for applying test signals through the parallel port. (Screen clip from the XESS (TM) GXSTools).

You will be able to apply the four bits of the A and B input signals. However, the 7-segment display can only show the digit corresponding to the units, unless you add an external LED for the tens digit. This can be easily done by placing the XS40 board on a protoboard and connecting a LED diode between the pin corresponding to the tens digit (e.g. pin no. 3) and the ground (pin 52). Place a resistor of about 330 ohm in series with the diode to limit the current. You can do the same for the ERROR signal.
• For the FPGA demoboard: Set all the switches SW3 in the zero position (i.e. left hand side pushed down). You should see 0 displayed on the right hand side display U8. Next set the switches according to the different BCD representations of the digits 0 to 9 for the inputs A and B and check the 7-segment displays. Verify proper operation and write the results down in your lab notebook. Also check the ERROR signal if implemented.
• For the XS95 board, test signals are applied through the parallel cable using the GXSPORT utility (in the XSTOOLS/BIN directory, click on GXSPORT) shown in Figure 4. In the GXSPORT window, set the value of the data bits corresponding to the input signals as defined in the user constraint file (e.g. input A1 is connected to port D0, etc.). You will be able to apply the four bits of the A and B input signals. However, the 7-segment display can only show the digit corresponding to the units, unless you add an external LED for the tens digit or used the decimal point of the 7-segment display. This can be done easily by placing the XS95 board on a protoboard and connecting a LED diode between the pin corresponding to the ERROR signal (e.g., pin no. 4 which is a free pin) and the ground (pin 49). Place a resistor of about 560 ohm in series with the diode to limit the current. You can do the same for the ERROR signal.

Copy your project back to your persopnal computer account for future use. If you have created more than one version or revision during the Design Implementation, you should delete the version that you don't need and keep only the latest one. These files take up a lot of space. To delete an older revision, go to the Design Manager window, select the revision you want to delete and go to the PROJECT->DELETE revision menu (NOTE do not delete the project!!!). You can also easily zip the project: in the Project Manager window, go to FILE-> ARCHIVE Project. This will zip the entire project, including all the project libraries needed for the current project. You can now save the project in your directory. The archived project is also handy when you need to email it to somebody else.

 Put your name on the Schematic . Take a sreen capture of the top level schematic to include in your report.

You must hand in a short lab report that contains the following:

1. Course Title, Lab no, Lab title, Lab section, your name, your partner's name and date.

2. Section on the lab experiment:

1. Brief description of the lab experiment including the goals and discussion on the theory of operation (if applicable).
2. Copy of the VHDL source code of the decoder circuit
3. Schematics of the circuit (take a screen capture of the schematics).
4. Simulation waveform.
5. Summary of the Map, Place&Route, Pad and Timing reports.
6. Discussion of the results indicating that the circuit functions properly. Explain also what you did in order for the 7-segment display to work properly (in case of the Digilab Board).
3. Conclusion.
