작성일: 2013.11.07

SmartFusion2 Starter Kit...

Overview | Documents | Training & Demos | Ordering


<< Overview >>

smartfusion2 starter kitMicrosemi's SmartFusion2 Starter Kit provides designers with access to SmartFusion2 system-on-chip(SoC) FPGAs, which integrate inherently reliable flash-based FPGA fabric, a 166 MHz ARM Cortex-M3 processor, advanced security processing accelerators, DSP blocks, SRAM, eNVM and industry required high-performance communication interfaces all on a single chip.

The SmartFusion2 starter kit supports industry-standard interfaces including Ethernet, USB, SPI, I2C and UART and includes a comprehensive breadboard to support unique design requirements. The kit can be used with Microsemi's Libero SoC v11.0 software, which includes a free Libero Gold license and comes preloaded with a uClinux demo. Emcraft Systems' Linux-based development environment is also supported. The SmartFusion2 device is available on an Emcraft Systems miniature (34mm x 59mm) mezzanine form factor system-on-module (M2S-SOM), which connects to the SOM-BSB-EXT baseboard. The kit is USB powered and includes FlashPro4 programming.

표1. "SmartFusion2 Starter Kit"에 들어있는 내용물 목록

Quantity Description
1 M2S-SOM SmartFusion2 system-on-module with M2S050-FG896
1 SOM-BSB-EXT SmartFusion2 system-on-module baseboard
1 FlashPro4 JTAG programmer for programming and debugging of SmartFusion2
1 USB 2.0 A male to mini-B Y-cable for UART/power interface (up to 1A) to PC
1 USB 2.0 A male to mini-B cable for connection of SmartFusion2 to PC in USB device ("gadget") role
1 Mini-B to USB 2.0 A female cable for connection of USB devices to SmartFusion2
1 Ethernet cable
1 USB WiFi module
1 Leather case

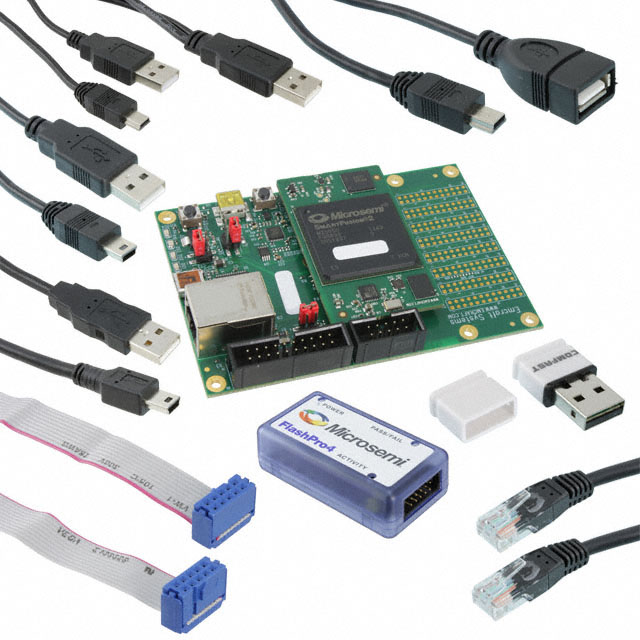

사진1. "SmartFusion2 Starter Kit"에 들어있는 내용물 사진

smartfusion2 starter kit

Note: This Kit also comes with a free Libero Gold software License.
Note: The SF2-STARTER-KIT-ES is RoHS compliant

smartfusion2 starter kit

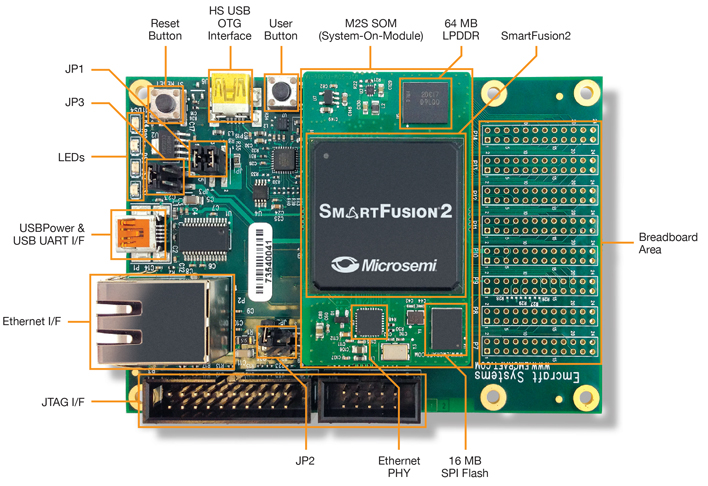

Hardware Feature Overview

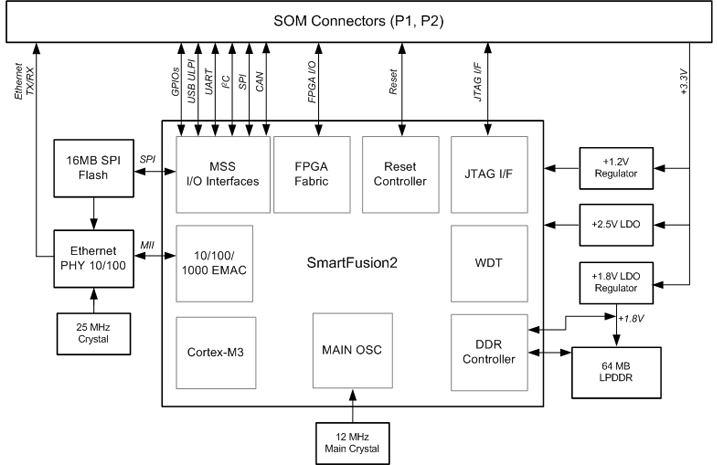

SmartFusion2 System-On-Module (SOM) Block Diagram

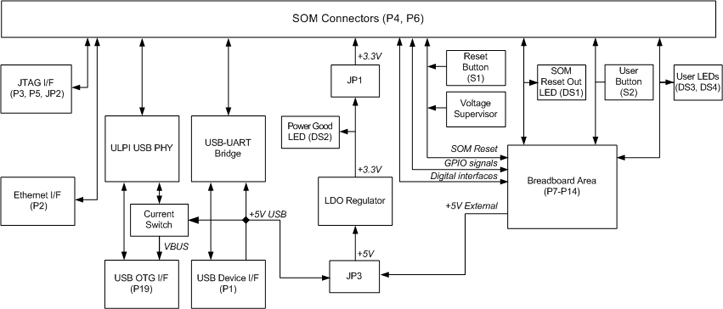

SmartFusion2 SOM Baseboard Block Diagram


<< Documents >>

Getting Started

Libero and SoftConsole "Hello, world" demo project for SF2-STARTER-KIT-ES-2 SOM Rev 1A  zip 4 MB 7/2013
Libero and SoftConsole "Hello, world" demo project for SF2-STARTER-KIT-ES-2 SOM Rev 2A  zip 3 MB 7/2013
Libero and SoftConsole "Hello, world" demo project for SF2-STARTER-KIT with PP SOM Rev 2A  zip 3 MB 7/2013
LPDDR Memory Config File zip 1 KB 2/2013
Running a SoftConsole "Hello, World!" Project on the SmartFusion2 Starter Kit url    2/2013
SmartFusion2 Starter Kit Guide  pdf 557 KB 7/2013
Starter Kit Versions and Compatibility url    2/2013
USB-UART Driver Files - FT232R zip 1 MB 1/2013

Hardware Documentation

SOM-BSB-EXT Baseboard Hardware Architecture Specification  pdf 278 KB 7/2013
SmartFusion2 SOM Hardware Architecture Specification pdf 406 KB 5/2013

Hardware Materials

SOM-BSB-EXT schematics url    1/2013
SOM-BSB-EXT Mechanical Drawing pdf 41 KB 2/2013
SOM-BSB-EXT Bill of Materials (BOM) url    1/2013
SmartFusion2 symbol and footprint (Altium Designer 9.4) url    12/2012
SmartFusion2 SOM schematics url    4/2013

Software Documentation

Linux Cortex-M User's Guide  pdf 288 KB 7/2013
Libero SoC v11.0 User's Guide pdf 24 MB 2/2013

Software Materials

GNU toolchain for uClinux Cortex-M3/M4 url    1/2013
Libero Programming File (STAPL) with U-Boot image embedded for SF2-STARTER-KIT-ES-2 SOM Rev 1A  zip 2 MB 7/2013
Libero Programming File (STAPL) with U-Boot image embedded for SF2-STARTER-KIT-ES-2 SOM Rev 2A  zip 3 MB 7/2013
Libero Programming File (STAPL) with U-Boot image embedded for SF2-STARTER-KIT with PP SOM Rev 2A  zip 2 MB 7/2013
Prebuilt Linux image ready to be loaded to the SmartFusion2 SOM board (SOM Revision agnostic)  zip 1 MB 7/2013
Windows TFTP server url    2/2013

Customer Notifications

Statement of Volatility for System-On-Module Baseboard pdf 395 KB 2/2013
Statement of Volatility for System-On-Module Rev 2A pdf 964 KB 2/2013

<< Training & Demos >>

Webcasts

SmartFusion2 DSP FIR Filter Demo Video (6 mins, 6/4/13)
Introducing SmartFusion2 Starter Kit for SoC FPGAs (59.58 mins, 1/31/13)
SmartFusion2 Overview (12.10 mins, 10/8/12)
Introducing SmartFusion2 SoC FPGAs (10/16/12)
Designing with SmartFusion2 SoC FPGAs (10/30/12)
Reducing Risks With Safety Critical Software (59.58 mins, 1/31/13)

Tutorials

SmartFusion2 SoC FPGA DSP FIR Filter Demo User Guide pdf 3 MB 4/2013
SmartFusion2 SoC FPGA Adaptive FIR Filter Demo User’s Guide pdf 4 MB 5/2013
SmartFusion2 ARM Cortex-M3 Lab Guide Tutorial pdf 2 MB 4/2013
SmartFusion2 Fabric Lab Guide Tutorial pdf 1 MB 4/2013
SmartFusion2 USB Lab Guide Tutorial pdf 2 MB 4/2013

Application Notes

Accessing I2C Devices from User-Space Applications url 12/2012
Adding secure copy and secure shell clients to uClinux url 5/2013
Booting uClinux on SmartFusion2 SoC FPGAs in 0.5 Seconds url 2/2013
Configuring SmartFusion2 Starter Kit for uClinux Development url 2/2013
How Fast is the SmartFusion2 SPI interface running under uClinux? url 2/2013
How Fast is the SmartFusion2 TCP/IP stack running under uClinux? url 2/2013
Making SmartFusion2 SoC FPGAs Visible as a USB Storage device Using Linux url 2/2013
Measuring the SmartFusion2 core current (VCC1V2 net) on SF2-STARTER-KIT-ES url 5/2013
Setting the Stack Size for a User-Space Application url 12/2012
Using a USB Flash device with SmartFusion2 SoC FPGAs under Linux url 2/2013
Using a USB WiFi device with SmartFusion2 SoC FPGAs under Linux url 2/2013
Using Keil uVision with M2S-STARTER-KIT url 5/2013

<< Ordering >>

Ordering Information

Part Number Description List Price
SF2-STARTER-KIT-ES-2 SmartFusion2 Starter Kit $299

Sales Services

Buy Now



Emcraft Linux Support

Request support by sending an email to This email address is being protected from spambots. You need JavaScript enabled to view it.

http://emcraft.com/index.php/som/m2s - Additional documentation and resources available on the Emcraft site.
